Toll Free at: 1-888-763-1800

Call us today for a free quotation: 1-888-763-1800

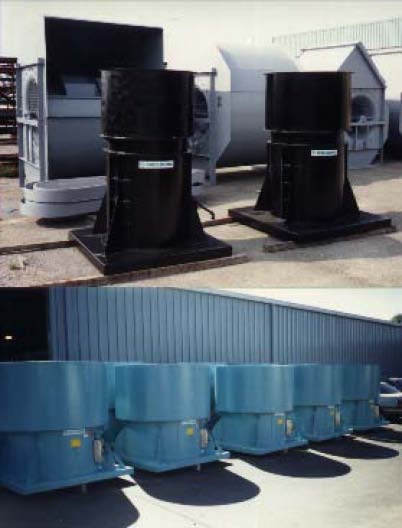

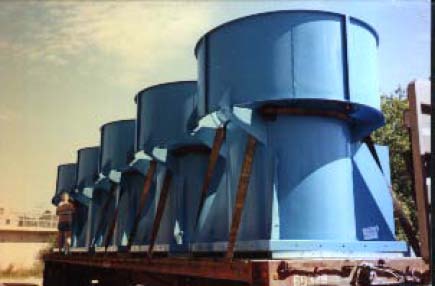

Vaneaxial Power Roof Ventilator

Canada Fans Industrial Blowers and Fans has a long and well established record of producing a full range of large industrial fans, blowers and belt drive and direct drive propeller fans for commercial and industrial applications. Our Engineering and Product Design Departments have expert professionals who can assist customers develop custom designed air handling and conveying systems that meet and exceed their critical industrial fan and blower applications. Regardless of your ventilation requirements, rely on Canada Fans Industrial Blowers & Fans to deliver the best and most effective air movement systems and solutions possible.


Canada Fans Inc.

Canada Fans Product Index

www.canadafans.com

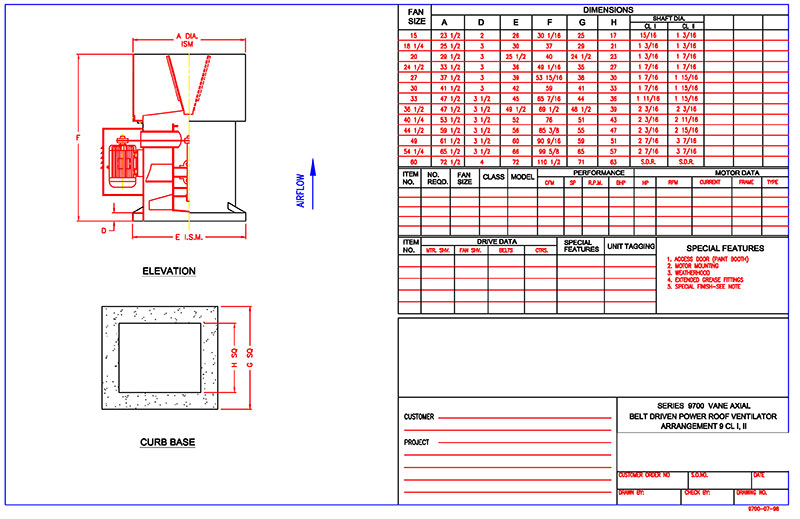

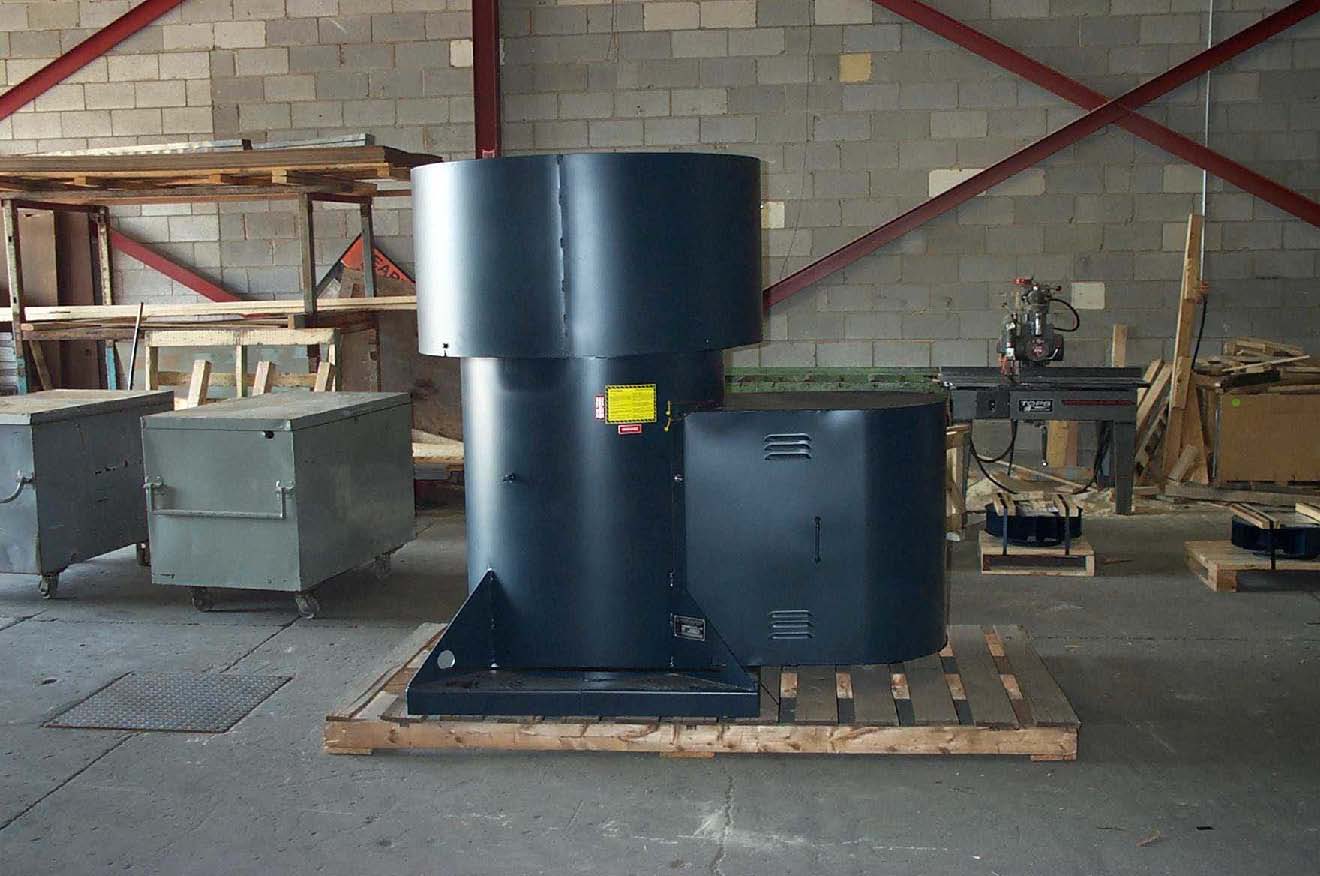

TYPICAL SPECIFICATION POWER ROOF VENTILATOR –9700 Vaneaxial

GENERAL

The roof ventilator shall be mounted with up-blast discharge and include a complete (direct/belt) driven vaneaxial type fan as designed and manufactured by Canada Fans to ensure smooth operation. Fan wheel shall be (steel/aluminum/stainless steel or graphite reinforced plastic-GRP) construction to ensure continuous operation in a hostile environment. Unless otherwise directed, fans shall have the arrangement, motor position and orientation as shown on the layout drawings.

PERFORMANCE (Fixed Pitch or Adjustable Pitch Aluminum Wheel)

Fan ratings shall be based on tests made in accordance with AMCA Standard 210. Flow shall be actual volumetric flow at the fan inlet. Fan static pressure is defined as static pressure at fan outlet less total pressure at fan inlet. Standard inlet density is to be taken as 0.75 lb/ft3 with corrections for temperature, elevation, inlet static pressure, gas composition and humidity as defined in the schedule. Fans shall be selected to operate to the right of the peak static pressure at the given speed to ensure stable performance. Fan brake horsepower shall be equal to or less than specified at the given flow and fan static pressure.

SOUND

Fan manufacturers shall provide sound power level ratings for fans tested and rated in accordance with AMCA Standards 300 and 301. Sound power ratings shall be in decibels (reference 10-12 watts) in eight octave bands. Sound power levels will be corrected for installation by the specifying engineer...dBA or sound pressure levels only are not acceptable.

CONSTRUCTION

Fan housings are to be heavy -- min. 12 gauge, continuously welded construction with flanged and punched inlet and outlet. Ventilator housings with lock seams or spot welded construction are not acceptable.

Ventilator windband to be heavy gauge, galvanized steel seam welded. Dampers fabricated of aluminum sheet with flanged edges for rigid performance. Rain tight weather cover furnished for all v-belt driven fans. Roof curb sheet to be heavy gauge steel—at least twice the thickness of the housing with flanged edges to simplify flashing to roof curb and ensure leak proof installation. Aerodynamically designed straightening fan vanes are to be integral to the fan housing. Fan bearing lubrication lines to be extended to a termination point inside the weather cover. Canada Blower ventilator rotors shall be attached to motor shaft by use of split, taper-lock Q-D bushing. A locking plate is bolted to the end of the shaft to ensure safe operation.

BEARINGS (belt driven fans)

Fan bearings are to be heavy duty, grease lubricated, precision anti-friction deep grove ball or spherical roller, self-aligning design. Bearings shall be designed for a minimum L-10 life of 40,000 when rated at the fan's maximum cataloged operating speed ventilating.com fanblower.com highpressureblower.net industrialblowerfan.com industrialfanblower.net industrialfanblower.com pressureblower.net northernindustrialsupplycompany.com industrialpressureblower.com tenderall.com chicagoblowercanada.com cbblower.com buffaloblower.com buffalofan.com nis-co.com canadianblower.com olegsystems.com canadablower.com abbblower.com acmefan.net industrialblower.net fansandblowers.net americanblower.net barryfan.com cincinnatifan.net canadafans.com barryfan.net pennbarry.net pennfan.net tcffan.com.

Leaders in Fan Technoloy

Canada Fans Inc.

Canada Fans Product Index

www.canadafans.com

TYPICAL SPECIFICATION POWER ROOF VENTILATOR –9700 Vaneaxial

SHAFT (belt driven fans)

Fan shafts are to be ASTM A-108 steel, grade 1040/1045, precision turned, ground and polished. Grade 1018 steel is not acceptable. The shaft's first critical speed shall be at least 143% of the fan's maximum operating speed.

PAINT

All fan surfaces are to be thoroughly prepared prior to painting using a combination of washing and hand and power tool cleaning as required in SSPC-SP-3. After cleaning, all surfaces (except wheel if other than steel) are to be coated with industrial grade alkyd enamel. Surfaces of bolted components not accessible after assembly shall be coated and allowed to dry prior to final assembly. Primer only will not be accepted. When a stainless steel fan is specified, steel parts have an SSPC-SP-6 surface preparation and gray epoxy paint is applied.

BALANCE & INSPECTION

All fans shall be precision balanced to ISO quality grade 2.5, report to be submitted with the maintenance manual. A final ventilator inspection by a qualified inspector prior to shipment is required to include: scope of supply confirmation, balance, welding, dimensions, bearings, duct and base connection points, paint finish and overall workmanship.

ACCESSORIES

Fan accessories shall be provided as called for in the plans and specifications. Standard ventilator accessories include:

Motor to be NEMA Design B 3/60/460-575V-1800 rpm, high efficiency TEFC 1.15 SF

V-Belt Drives - Variable Speed/Constant Speed with min 1.5 SF

Belt Guard or weather cover required on belt driven fans

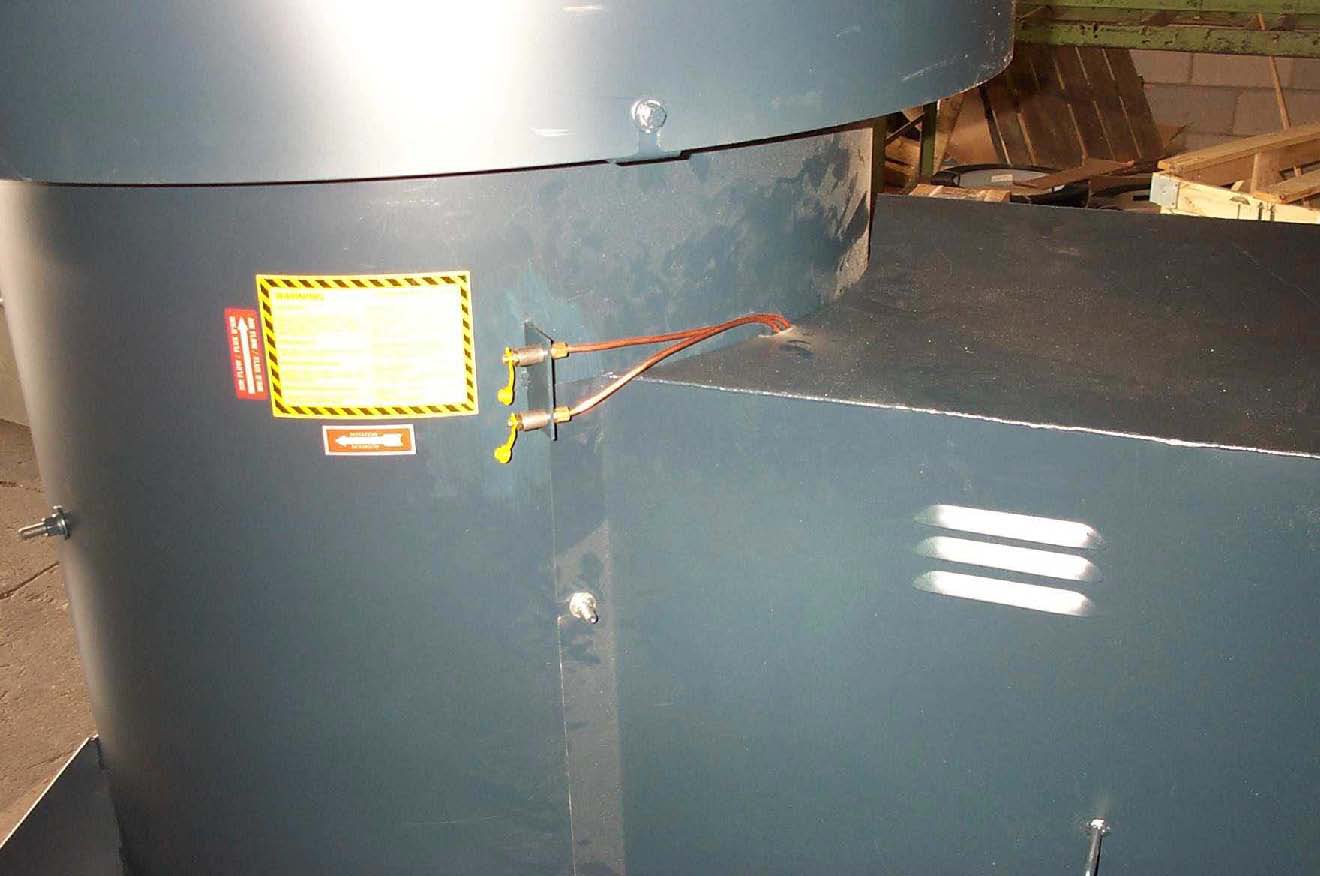

Extended lubrication lines (nylon, copper or stainless steel) with fittings terminating in an

accessible area. (belt driven fans only)

Additional Features that may be required:

Split pillow block bearings

Access Door – bolted/quick opening or plug type with raised door

Companion Flange (angle companion flange bolted to the fan inlet or outlet flange)

Inlet or Outlet screen heavy gauge wire on 1” or 2” centres

Inlet Bell streamlined for smooth air flow, flanged and bolted to the fan inlet

Above 300°F, split pillow block bearings required

Above 500°F, high temperature aluminum paint required

Vibration Isolation - Spring - Rubber-In-Shear

Fusable disconnect – to open the dampers in the event of fire

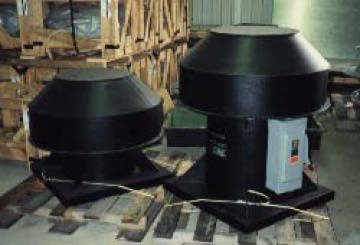

Square hinged mushroom hood with birdscreen &/or bugscreen &/or filters

Spark Resistant Construction –

AMCA “A” All parts of the fan in contact with the air stream non-ferrous material

AMCA “B” Non-ferrous wheel and aluminum rubbing ring where shaft passes through

Housing with shaft seal and sealed belt fairing

Leaders in Fan Technoloy

Canada Fans Inc.

Canada Fans Product Index

www.canadafans.com

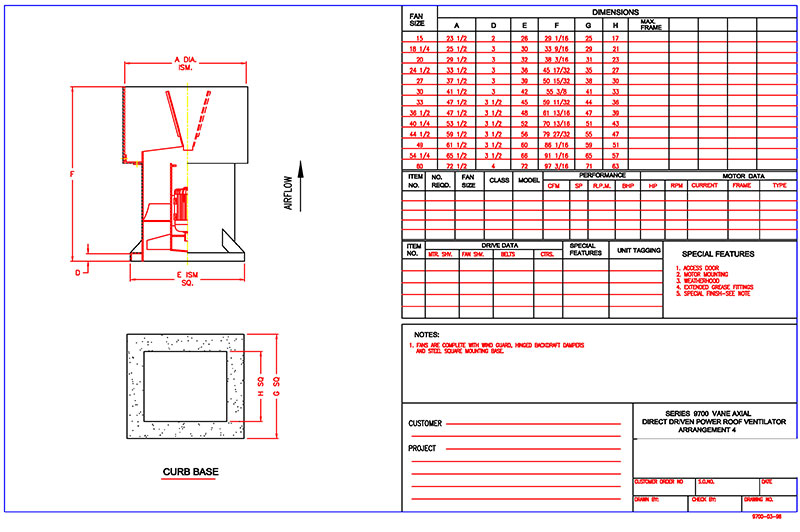

TYPICAL SPECIFICATION POWER ROOF VENTILATOR –9700 Tubeaxial

GENERAL

The Canada Blowersroof ventilator fan shall be mounted with up-blast discharge and include a complete (direct/belt) driven tubeaxial type fan as designed and manufactured by Canada Fans to ensure smooth operation. Fan wheel shall be (steel/aluminum/stainless steel or graphite reinforced plastic-GRP) construction to ensure continuous operation in a hostile environment. Unless otherwise directed, fans shall have the arrangement, motor position and orientation as shown on the layout drawings.

PERFORMANCE (Fixed Pitch or Adjustable Pitch Aluminum Wheel)

Fan ratings shall be based on tests made in accordance with AMCA Standard 210. Flow shall be actual volumetric flow at the fan inlet. Fan static pressure is defined as static pressure at fan outlet less total pressure at fan inlet. Standard inlet air density is to be taken as 0.75 lb/ft3 with corrections for temperature, elevation, inlet static pressure, gas composition and humidity as defined in the schedule. Fans shall be selected to operate to the right of the peak static pressure at the given speed to ensure stable performance. Fan brake horsepower shall be equal to or less than specified at the given flow and fan static pressure.

SOUND

Fan manufacturers shall provide sound power level ratings for fans tested and rated in accordance with AMCA Standards 300 and 301. Sound power ratings shall be in decibels (reference 10-12 watts) in eight octave bands. Sound power levels will be corrected for installation by the specifying engineer...dBA or sound pressure levels only are not acceptable.

CONSTRUCTION

Fan housings are to be heavy -- min. 12 gauge, continuously welded construction with flanged and punched inlet and outlet. Housings with lock seams or spot welded construction are not acceptable.

Fan windband to be heavy gauge, galvanized steel seam welded. Dampers fabricated of aluminum sheet with flanged edges for rigid performance. Rain tight weather cover furnished for all v-belt driven fans. Roof curb sheet to be heavy gauge steel—at least twice the thickness of the housing with flanged edges to simplify flashing to roof curb and ensure leak proof installation. Aerodynamically designed straightening vanes are to be integral to the fan housing. Fan bearing lubrication lines to be extended to a termination point inside the weather cover. Ventilator rotors shall be attached to motor shaft by use of split, taper-lock Q-D bushing. A locking plate is bolted to the end of the shaft to ensure safe operation.

BEARINGS (belt driven fans)

Fan bearings are to be heavy duty, grease lubricated, precision anti-friction deep grove ball or spherical roller, self-aligning design. Bearings shall be designed for a minimum L-10 life of 40,000 when rated at the fan's maximum cataloged operating speed.

Leaders in fan technology

Canada Fans Inc.

Canada Fans Product Index

www.canadafans.com

TYPICAL SPECIFICATION POWER ROOF VENTILATOR –9700 Tubeaxial

SHAFT (belt driven fans)

Fan shafts are to be ASTM A-108 steel, grade 1040/1045, precision turned, ground and polished. Grade 1018 steel is not acceptable. The shaft's first critical speed shall be at least 143% of the fan's maximum operating speed.

PAINT

All fan surfaces are to be thoroughly prepared prior to painting using a combination of washing and hand and power tool cleaning as required in SSPC-SP-3. After cleaning, all surfaces (except wheel if other than steel) are to be coated with industrial grade alkyd enamel. Surfaces of bolted components not accessible after assembly shall be coated and allowed to dry prior to final assembly. Primer only will not be accepted. When a stainless steel fan is specified, steel parts have an SSPC-SP-6 surface preparation and gray epoxy paint is applied.

BALANCE & INSPECTION

All fans shall be precision balanced to ISO quality grade 2.5, report to be submitted with the maintenance manual. A final inspection by a qualified inspector prior to shipment is required to include: scope of supply confirmation, balance, welding, dimensions, bearings, duct and base connection points, paint finish and overall workmanship.

ACCESSORIES

Fan accessories shall be provided as called for in the plans and specifications. Standard ventilator accessories include:

Motor to be NEMA Design B 3/60/460-575V-1800 rpm, high efficiency TEFC 1.15 SF

V-Belt Drives - Variable Speed/Constant Speed with min 1.5 SF

Belt Guard or weather cover required on belt driven fans

Extended lubrication lines (nylon, copper or stainless steel) with fittings terminating in an

accessible area. (belt driven fans only)

Additional Features that may be required:

Split pillow block bearings

Access Door – bolted/quick opening or plug type with raised door

Companion Flange (angle companion flange bolted to the fan inlet or outlet flange)

Inlet or Outlet screen heavy gauge wire on 1” or 2” centres

Inlet Bell streamlined for smooth air flow, flanged and bolted to the fan inlet

Above 300°F, split pillow block bearings required

Above 500°F, high temperature aluminum paint required

Vibration Isolation - Spring - Rubber-In-Shear

Fusable disconnect – to open the dampers in the event of fire

Square hinged mushroom hood with birdscreen &/or bugscreen &/or filters

Spark Resistant Construction –

AMCA “A” All parts of the fan in contact with the air stream non-ferrous material

AMCA “B” Non-ferrous wheel and aluminum rubbing ring where shaft passes through

Housing with shaft seal and sealed belt fairing

Leaders in fan technology


Contact Canada Fans today to find out more about our full line of world class backward inclined blowers to meet all of your industrial blower fan needs. Our backward inclined blowers are used in both commercial and industrial applications and are used all over Canada and the United States. Our Industrial Blowers and Large Industrial Fans come in both Direct Drive Blower and Belt Drive Blower configurations. You can also choose between forward curve blowers and backward inclined blowers, depending on your needs. We also carry a range of centrifugal blower fans which are high rated and high temperature blowers. We also carry a wide range of propeller fans, plenum fans, large industrial fans which can come in both belt drive and direct drive configurations.



Canada Fans offers a full line of the following Industrial Blower Fan Products:



Tags: Axial Roof Ventilators, Axial Ventilator, Blower, Blower Fan, Blower Fan Canada, Blower Fan Suppliers, Blower Industrial, Centrifugal Blower Fan, Centrifugal Blower Fan Suppliers, Industrial Centrifugal Blower, Industrial Centrifugal Fan, Industrial Fans, Industrial Fans and Blowers, Industrial Pressure Blower, Inline Belt Drive Fans, Inline Exhaust Fans, Material Handling Fans, Mixed Flow Inline Fan, Radial Blade Belt Centrifugal Fan, Radial Blade Centrifugal Fan, Radial Blade Fan, Radial Blade Pressure Blower, Roof Exhaust Fans, Vaneaxial Fans Aluminum Wheel, Vaneaxial Power Roof Ventilator, Wall Exhaust Fans, Wall Supply Fans , Industrial Fans Uses and Applications , Commercial Extractor Fans , Power Roof / Wall Exhausters , Blower Fan Ventilator Air Make Up Fans , Exhaust Fans , Industrial Building Ventilation , Ventilation with Ventilators and Blower Fans , Vaneaxial Fans / Tubeaxial Fans , Mixed Flow Fans , Roof Ventilators
